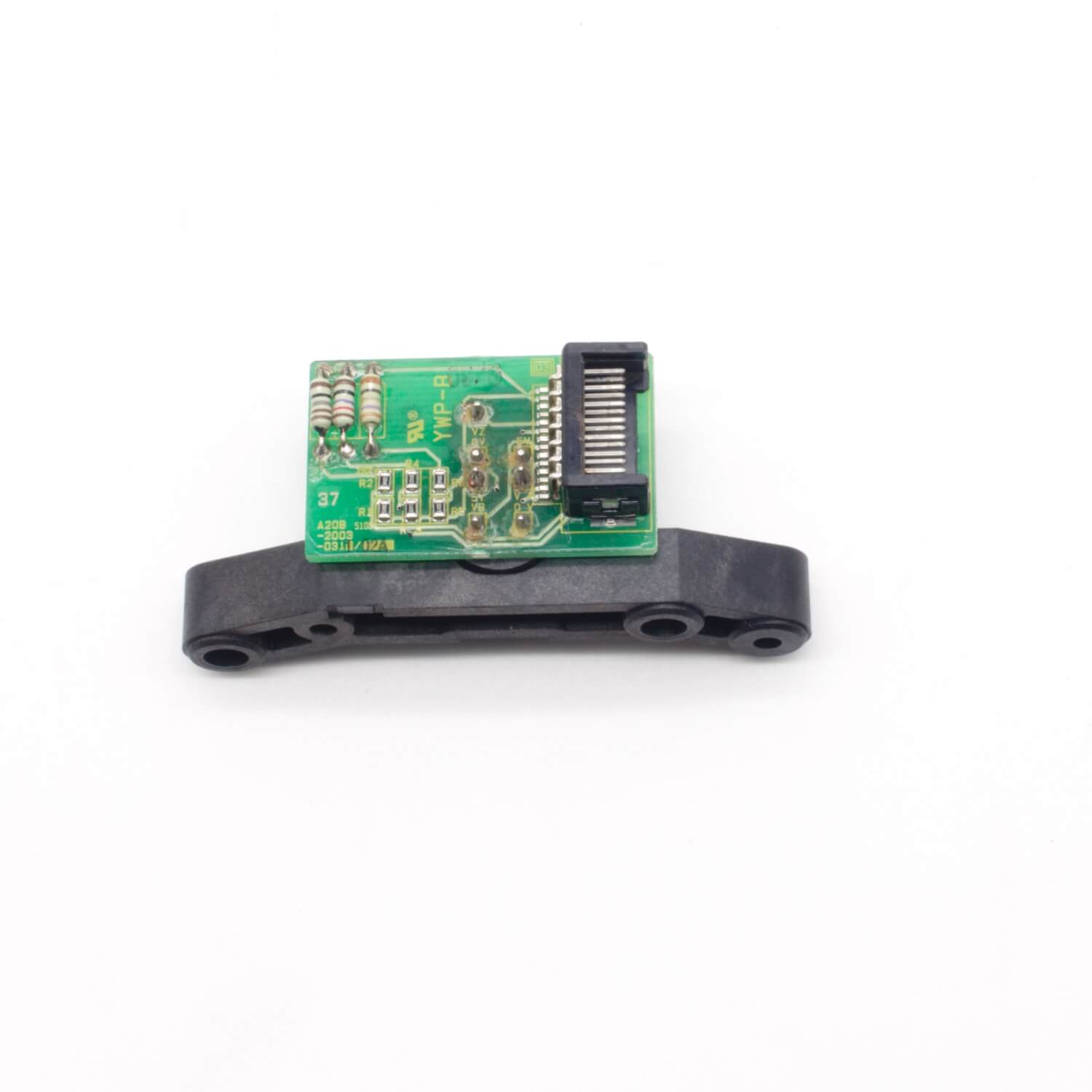

The FANUC A20B-2003-0311 is a built-in encoder, also known as an MZI sensor, designed for spindle speed feedback and precise spindle orientation control in FANUC CNC systems.
Unlike standard speed-only spindle applications, certain machining operations require accurate spindle positioning. The A20B-2003-0311 provides the necessary one-revolution reference signal and position feedback to ensure the spindle stops at an exact angular position when required.
| Part Number | A20B-2003-0311 |
| Type | Built-in Encoder / MZI Sensor |
| Brand | FANUC |
| Application | Spindle speed & orientation control |
| Condition | Tested Used / Brand New / Compatible Replacement |
| Warranty | 3-Month / 1-Year warranty |
All units are fully tested before shipment to ensure stable signal output and reliable orientation performance.
In most machining processes, the spindle operates under speed control only. However, in special situations, precise spindle positioning is required.
Typical applications include:
During these operations, the spindle must stop at a fixed angular position. This function is known as spindle orientation.
Watch the real repair process of a FANUC spindle motor, including the disassembly of the internal encoder (MZI sensor).
The video demonstrates how technicians access and inspect the built-in encoder used for spindle speed feedback and spindle orientation control.
Understanding the internal encoder structure helps technicians diagnose spindle feedback issues and orientation problems in CNC machining centers.
For more repair cases and technical videos, feel free to visit and follow our YouTube channel: @CNCFixtech
When the NC system issues an orientation command:
The encoder ensures:
Without a stable MZI encoder signal, spindle orientation may fail or become unstable.
The A20B-2003-0311 belongs to the MZI sensor type used in FANUC spindle systems.
MZI sensors provide:
This signal allows the CNC system to transition from speed control to position control when spindle orientation is required.
To meet different project requirements and budgets, the FANUC A20B-2003-0311 built-in encoder (MZI sensor) is available in three condition options. Each option is carefully inspected or manufactured to ensure reliable spindle feedback and orientation performance.
The Tested Used option refers to an original FANUC unit that has been previously used but remains in excellent working condition. Each unit is carefully inspected and fully tested before shipment.
Typical characteristics include:
Original FANUC component
Excellent functional condition
Minor cosmetic signs of previous use
This option is widely chosen for maintenance and repair projects where reliable performance is required while maintaining a more cost-effective solution.
The Brand New (Original) unit is a factory-new component manufactured according to original specifications. It has never been used and is in perfect cosmetic and functional condition.
This option is ideal for customers who require:
Brand new industrial components
Long-term machine operation stability
Replacement with original specifications
Brand new units provide the highest level of reliability and are suitable for critical CNC spindle systems where maximum performance and durability are required.
The Compatible Replacement version is a cost-effective alternative designed to replace the original encoder in compatible spindle systems.
These units are manufactured to match the functional requirements of the original encoder and are tested to ensure stable signal output for spindle speed feedback and orientation control.
Key advantages include:
Economical replacement option
Stable performance for general industrial applications
Suitable for maintenance projects with budget considerations
Compatible replacement units provide a practical solution for customers who need reliable functionality while reducing replacement costs.
| Condition | Description | Warranty | Best For |
|---|---|---|---|
| Brand New (Original) | Factory-new original unit manufactured to original specifications and never used. | 12-Month Warranty | Long-term machine operation |
| Tested Used (90% New) | Original unit that has been fully inspected and functionally tested to ensure reliable performance. | 3-Month Warranty | Cost-effective maintenance |
| Compatible Replacement | Alternative replacement unit manufactured to match the functional requirements of the original encoder. | 3-Month Warranty | Budget-friendly repairs |
The spindle built-in encoder and sensor system play an important role in spindle speed feedback and protection monitoring.
When abnormal signals or operating conditions occur, the CNC system may generate spindle alarms.
Below are some common FANUC spindle-related alarms that may be associated with spindle motor sensors or feedback components.
| Alarm Code | Alarm Description | Possible Causes |
|---|---|---|
| SP9001 | Spindle motor overheat | When motor temperature is low: check motor cable, temperature sensor, control board, and temperature parameter (No.4134). When motor temperature is high: check spindle parameters, cutting load and machining process, and motor cooling conditions. |
| SP9002 | Spindle speed deviates from commanded speed | During high-speed acceleration: check parameter No.40821. During cutting: check cutting load, machining process, and torque limit parameters (No.4028, No.4029). During no-load operation: check spindle parameters and motor sensor condition. |
| SP9031 | Spindle rotation is restrained | Possible causes include phase loss or incorrect phase of the motor power supply, faulty motor sensor or encoder cable, mechanical locking, spindle drive (SPM) issues, or incorrect spindle parameters. |
Spindle alarms may be triggered by various factors, including motor sensors, encoder signals, cables, parameters, or mechanical conditions. Proper inspection of the spindle motor feedback system is recommended when diagnosing spindle-related alarms.
Although the FANUC A20B-2003-0311 built-in encoder (MZI sensor) itself is typically not repairable due to its internal electronic structure, spindle orientation or feedback-related alarms are not always caused by the encoder alone.
In many cases, spindle alarms may also be related to:
Encoder interface cables
Spindle motor sensors
Parameter configuration
Spindle drive (SPM) modules
Mechanical resistance inside the spindle system
Our technical team provides professional spindle motor inspection and repair services to help identify the root cause of spindle alarms and restore stable machine operation.
Typical services include:
Spindle motor diagnostic inspection
Encoder signal verification
Spindle drive module testing
Cable and connector inspection
System parameter evaluation
If the built-in encoder is confirmed to be faulty, we can provide fully tested replacement units to minimize machine downtime.
Need help diagnosing a spindle alarm? Contact our technical team for support.
Encoder Internal Cable
To ensure stable signal transmission, the internal encoder cable plays a critical role in the spindle feedback system.
Damaged or aged cables may cause:
When replacing the A20B-2003-0311 encoder, it is recommended to inspect or replace the corresponding internal encoder cable to ensure optimal system performance.
We provide compatible encoder internal cables upon request. Please confirm your motor model for accurate matching.
The FANUC A20B-2003-0311 is a built-in encoder (MZI sensor) used in spindle motor systems.
It provides spindle speed feedback and a one-revolution reference signal for spindle orientation control.
This allows the CNC system to accurately stop the spindle at a specific angular position during operations such as automatic tool change or precision machining.
The spindle may fail to orient, stop at incorrect angles, or generate orientation-related alarms.
Please provide your motor model, CNC control series, and alarm information for verification.
Some spindle alarms may be related to spindle sensor or encoder signals, such as:
However, these alarms may also be caused by cables, parameters, spindle drive modules, or mechanical issues. A full system inspection is usually required to determine the exact cause.
To meet different project requirements, the encoder is available in several condition options:
Customers can choose the most suitable option depending on their budget and maintenance needs.
Yes. Although the encoder itself is typically not repairable, we provide professional spindle motor inspection and repair support.
Our technicians can assist with:
This helps identify the root cause of spindle alarms and restore stable machine operation.
| Weight | 0.2 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
| Condition | 90% New, Brand New, Compatible Replacement (Made in China) |
